Diode laser stack
LT HPL UPP KR STE CLE BML HYN

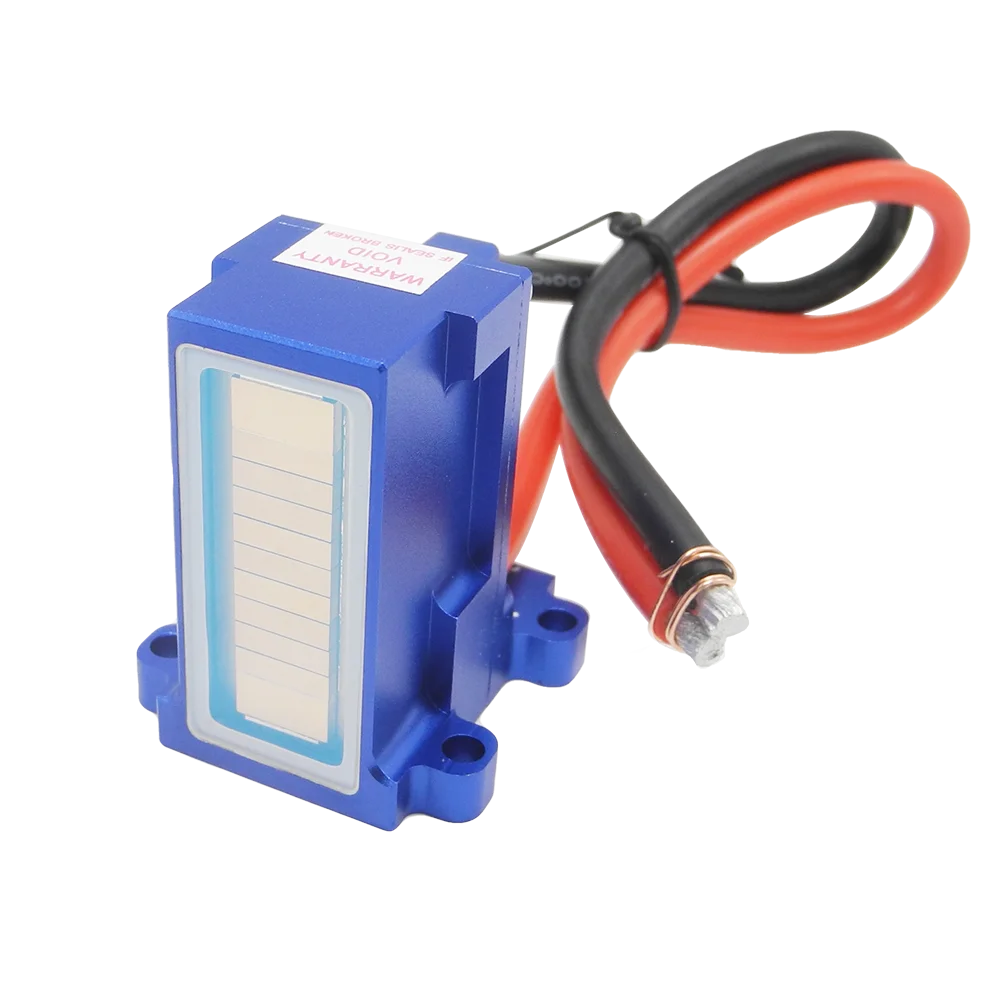

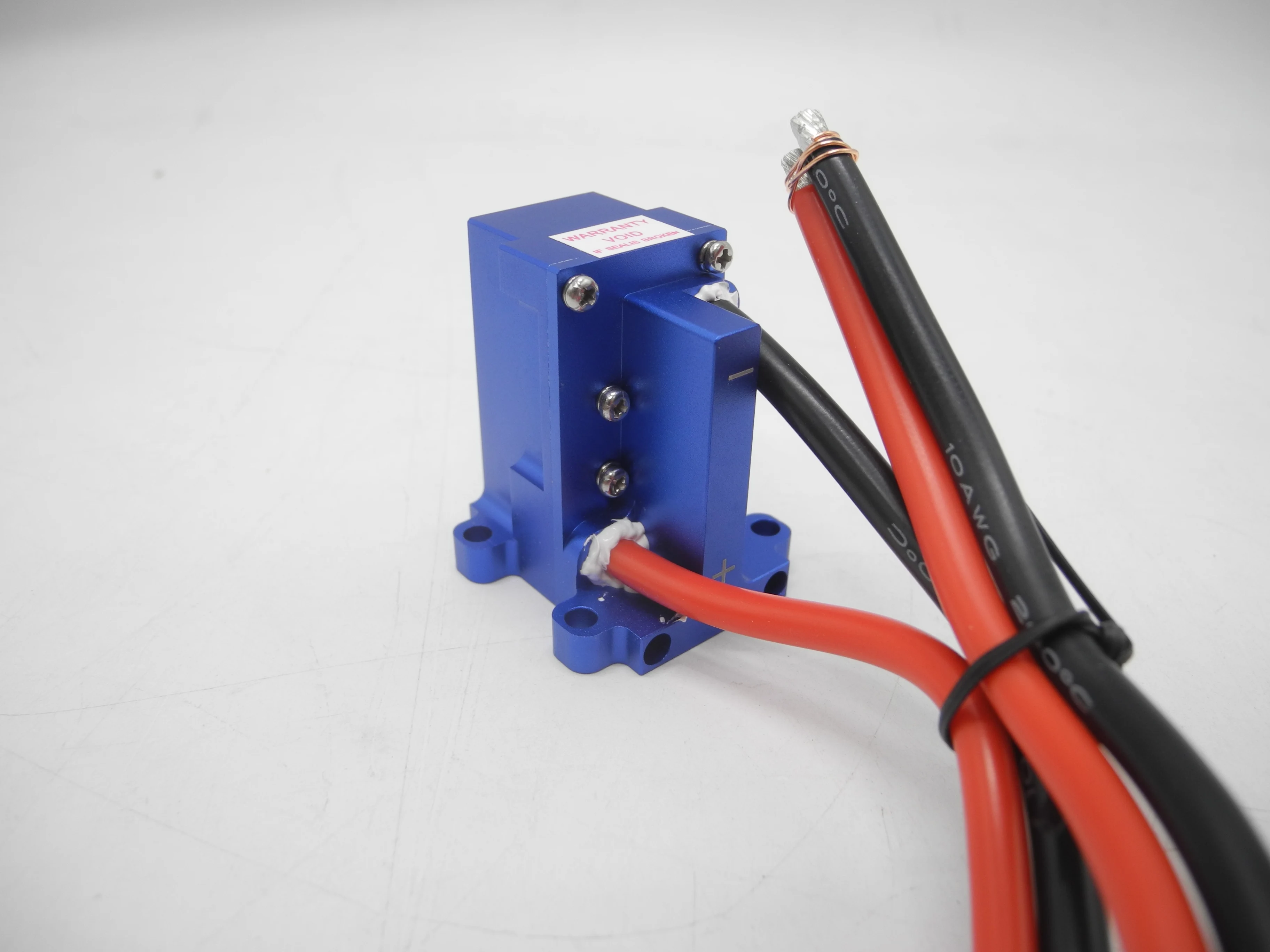

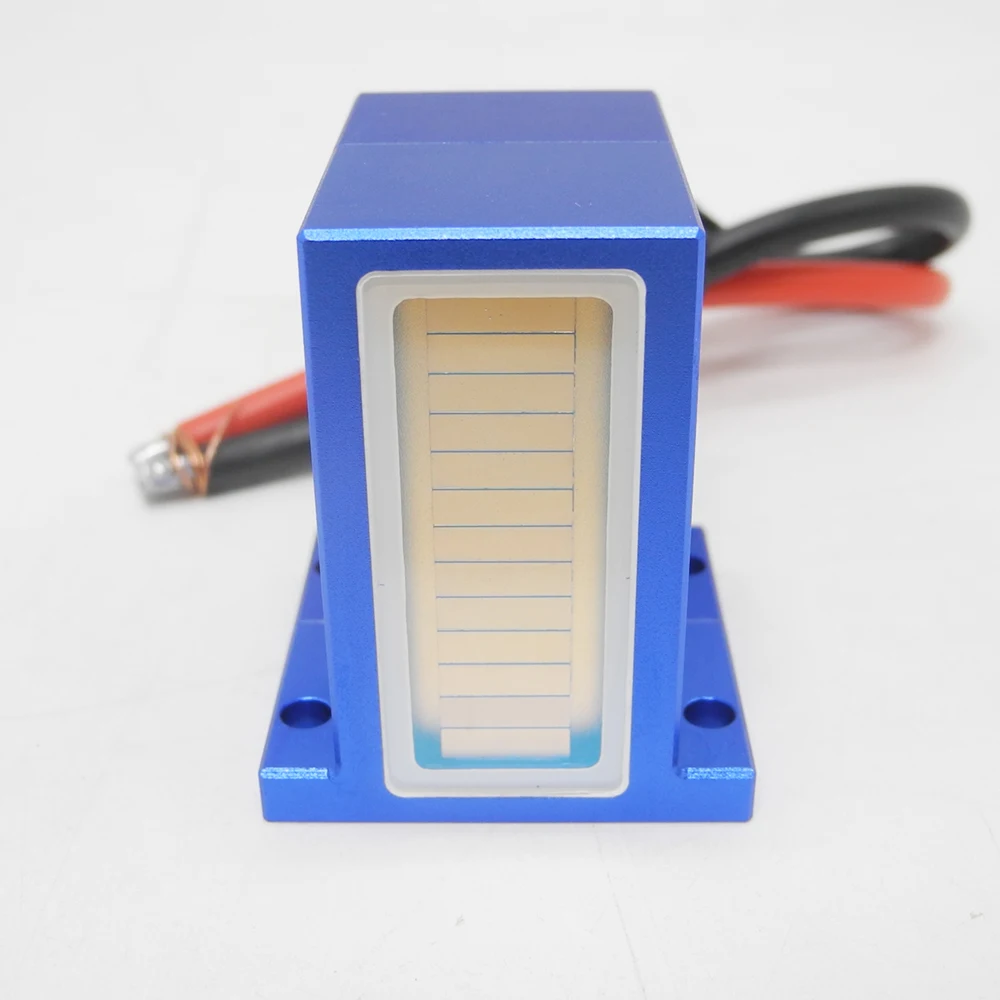

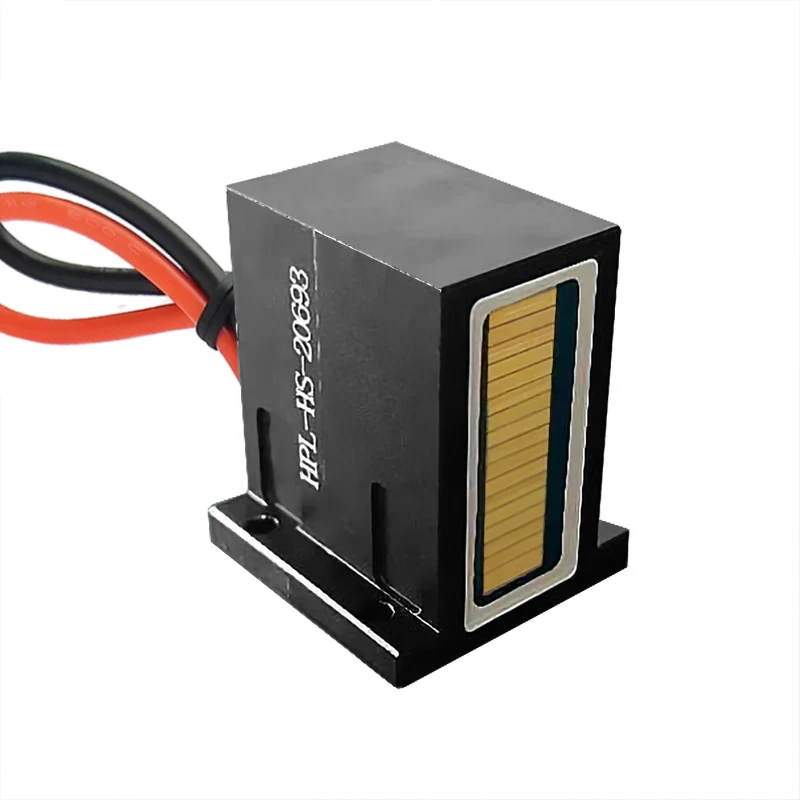

American Coherent Bars laser transmitter emitter laser module 808nm 1064nm 755nm
All chips are American Coherant Chips.
-

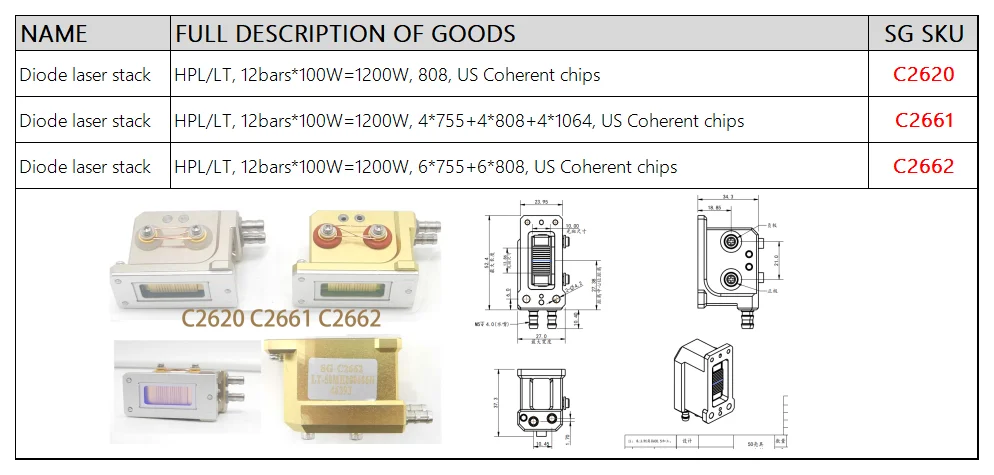

SG C2620: 1200W 12bars*808nm
-

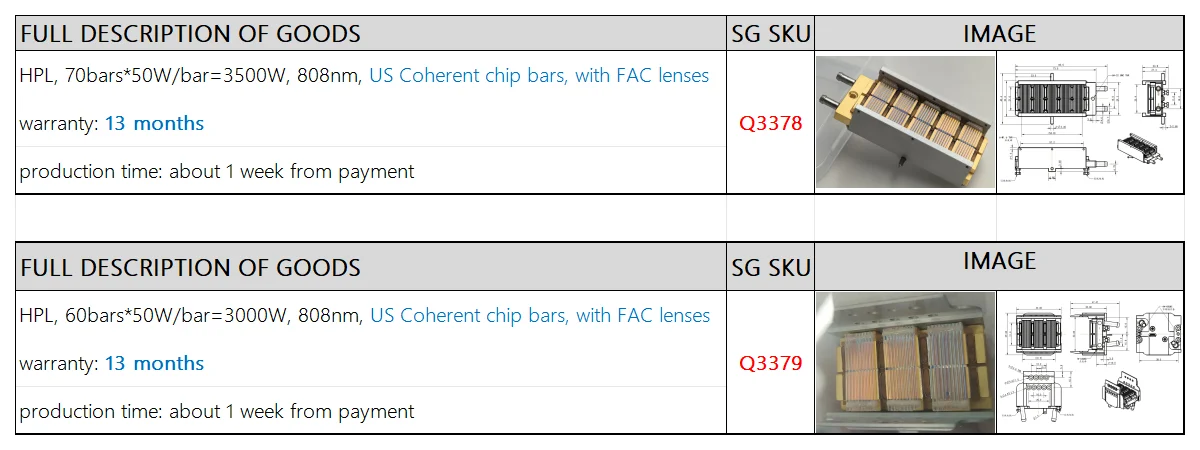

SG Q3378: 3500W 70bars*808nm
-
SG Q3379: 3000W 60bars*808nm
| SKU/Model | Power | Bar Quantities | Wavelengths | Others |
| SG L049 | 300W | 6 | 808nm | |
| SG L026 | 500W | 10 | 808nm | |
|
SG O612 |
500W |
10 |
808nm |
high: 48.5mm |
| SG L027 | 500W | 10 | 808nm | back water outlet |
| SG L028 | 500W | 10 | 808nm | cylinder lenses |
| SG L029 | 500W | 10 | 2 bars*1064nm+ 2 bars*755nm+ 6 bars*808nm | |
| SG L001 | 500W | 10 | 2 bars*1064nm+ 8 bars*808nm | |
| SG L030 | 500W | 10 | 1 bar*755nm+ 9 bars*808nm | |
| SG J012 | 500W | 10 | 4 bars*1064nm+ 6 bars*808nm | |
| SG J063 | 500W | 5 | 808nm | |
| SG L032 | 600W | 10 | 808nm | |
| SG L033 | 600W | 12 | 4 bars*1064nm+ 4 bars*755nm+ 4 bars*808nm | |
| SG J064 | 600W | 6 | 808nm | |
| SG L034 | 800W | 8 | 808nm | STE customized shape |
| SG L536 | 800W | 16 | 6 bars*1064nm+ 5 bars*755nm+ 5 bars*808nm | |
| SG L102 | 1000W | 10 | 808nm | |
| SG L035 | 1200W | 12 | 808nm | |
| SG L036 | 1200W | 12 | 4 bars*1064nm+ 8 bars*808nm | |
| SG L037 | 1200W | 12 | 4 bars*1064nm+ 4 bars*755nm+ 4 bars*808nm | |
| SG L017 | 1200W | 12 | 2 bars*1064nm+ 2 bars*755nm+ 8 bars*808nm | |
| SG L018 | 1200W | 12 | 4 bars*1064nm+ 2 bars*755nm+ 6 bars*808nm | |
|
SG O606 |
1200W |
12 |
4 Bars*1064nm+8 Bars*808nm |
|
| SG L038 | 1500W | 15 | 808nm | |
| SG L039 | 1500W | 15 | 3 bars*1064nm+ 3 bars*755nm+ 9 bars*808nm |
SG L026:
500W 10bars*808nm
SG L027:
500W 10bars*808nm back water outlet
SG L028:
500W 10bars*808nm cylinder lenses
SG L034:
800W 8bars*808nm STE customized shape
SG L030:
500W 2 waves 9bars*808nm+1bar*755nm
SG L035:
1200W 12bars*808nm
SG L038:
1500W 15bars*808nm
